Experience LinearZ,
the customized lifting for each layer of your skin
We are not the same, the skin neither, LinearZ gives patients custom-designed lifting.
- Customized Mode for Skin condition
Dot/Linear
Adjusting Depth
- Precise targeting
Lifting
Rejuvenation
-
Linear Type & Dot Type
LinearZ is an approved medical device
by Korean FDA(MFDS).
It may treat the different skin layers
with a Mode & Depth adjustable cartridge.

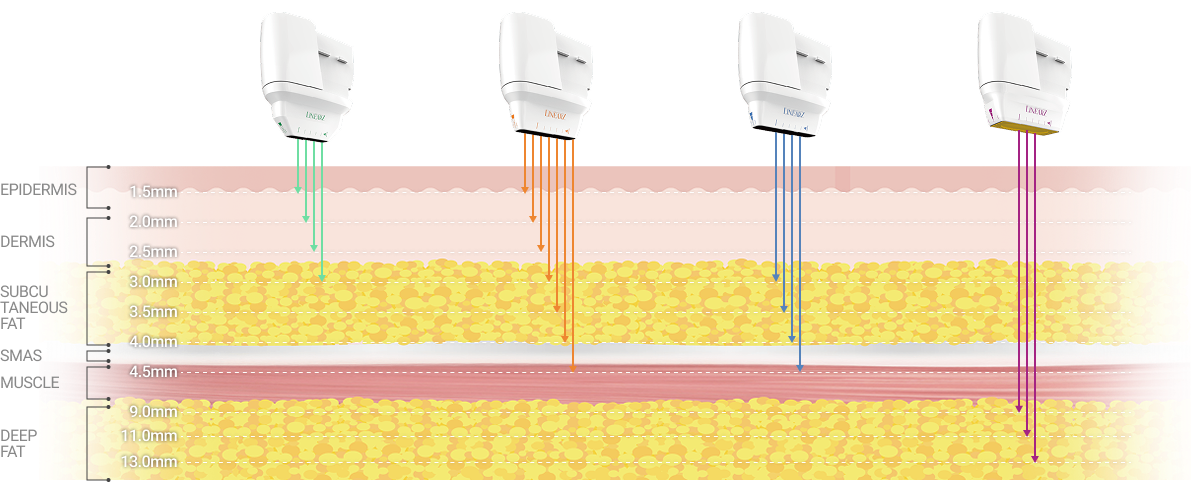

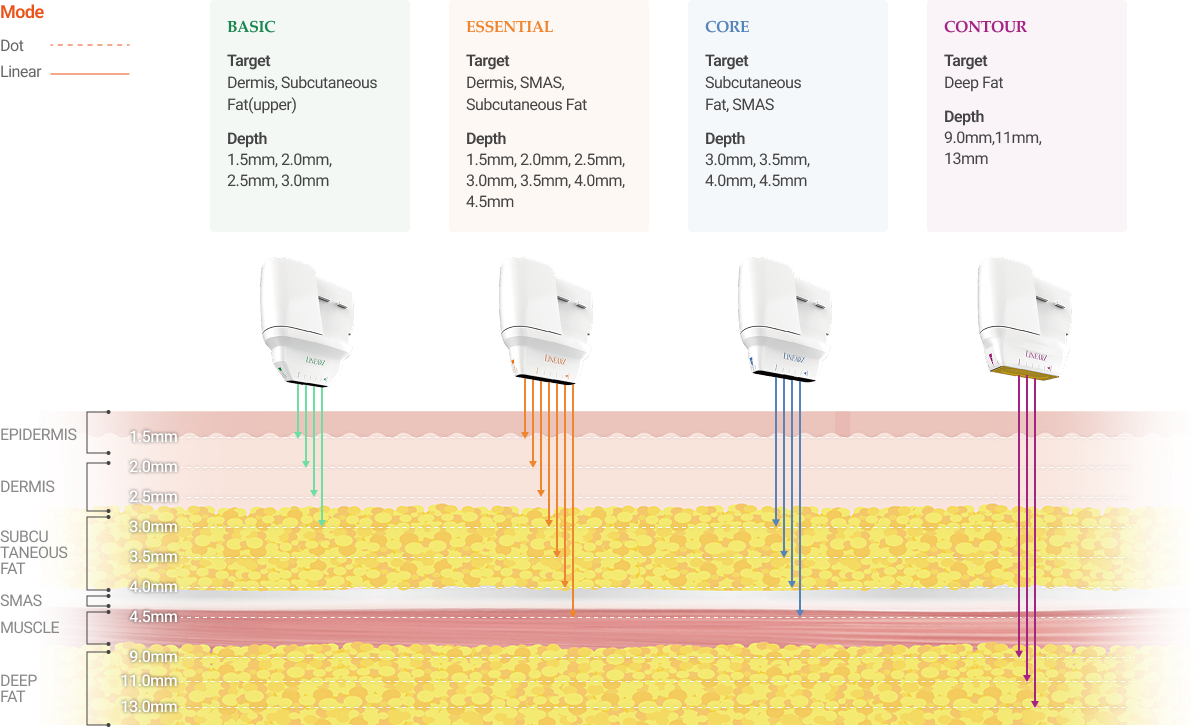

LinearZ delivers energy to each skin layer using a total of 4 cartridges that can adjust the form of energy and depth.
- Dot
- Linear
- EPIDERMIS
- DERMIS
- SUBCU
TANEOUS
FAT - SMAS
- MUSCLE
- DEEP
FAT
- 1.5mm
- 2.0mm
- 2.5mm
- 3.0mm
- 3.5mm
- 4.0mm
- 4.5mm
- 9.0mm
- 11.0mm
- 13.0mm
A 0.5mm-unit depth is an exclusive feature of the ACCU series, and it is not applied to BASIC, ESSENTIAL, or CORE cartridges.

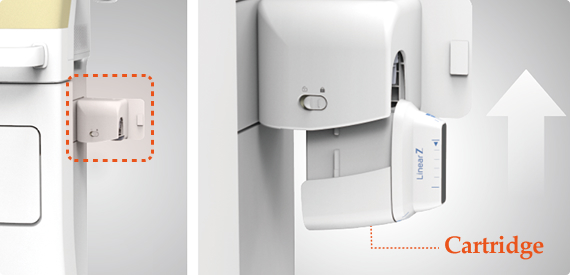

Equipped with a degassed water replacement system that
can quickly stabilize the temperature inside the cartridge

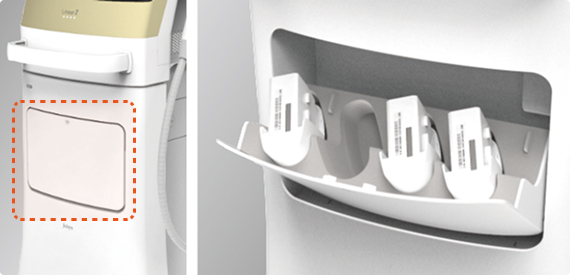

4 removable Silicone pad for cartridges Can be
stored hygienically
-

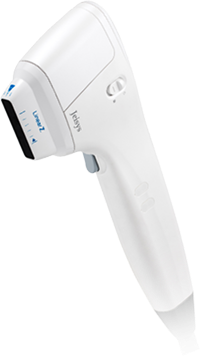

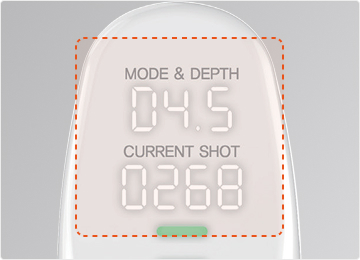

Handpiece LED (White)
Mode(Lineae&Dot) & Depth and current shot time checked in real-time
-

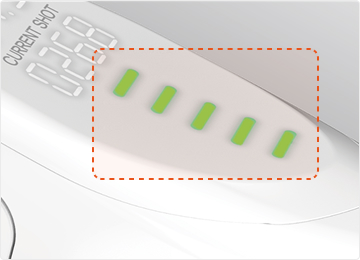

Handpiece LED (BarType)
Indicates the position of the transducer
and the temperature of the cartridge -

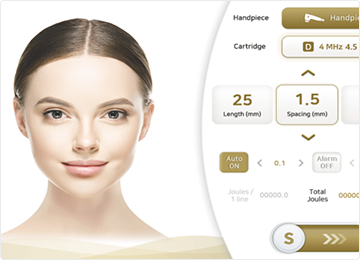

15-inch touch screen
Large display from various angles
easy to secure view
Consult a medical expert for more details.
-
It is a technique that precisely delivers ultrasound energy in points, lines, and two different types to the targeted skin layer depth.
-
LinearZ causes minimal pain and, in some cases, can be performed without anesthesia. Swelling and tingling may occur, but these are temporary reactions.
Certified by the Ministry of Food and Drug Safety
| Output Power | 0.1 ~ 3.0J |
|---|---|
| Spacing |
- Dot mode: 1.0 - 2.0 mm (0.1 mm step) - Linear mode: N/A(CW) |
| Length |
- Dot mode: 5.0 - 25 mm (5 mm step) - Linear mode: 25mm fixed |
| Cartridge |
- Basic (Dot/Linear): 2.0mm / 3.0mm - Essential (Dot/Linear): 1.5mm / 2.0mm / 3.0mm - Core (Dot/Linear): 4.5mm / 6.0mm - Contour (Dot/Linear): 9.0mm / 11.0mm / 13.0mm |
| Dimensions (mm) | 1207(H) x 500(W) x 615.5(L) |
| Weight | 51 kg |
