Before
4 Weeks After
SurgicalMode
-
High-Peak Power

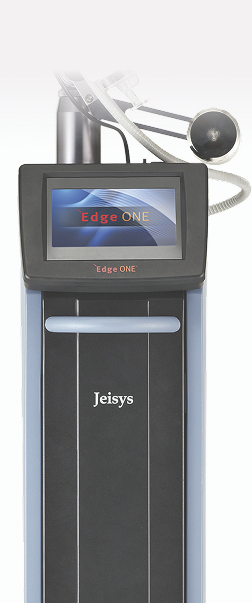

Ultra Pulse of Edge ONE specially makes the laser beam very accurate without damaging the surrounding tissue.
It can also be applied to a very small lesions less than 1 millimeter. -
INDICATION
Moles / Warts / Lentigo / Soft Fibroma
Syringoma / Actinic Cheilitis / Actinic Kerotosis / more
FractionalMore
120s
120
350
800
Surgical tip

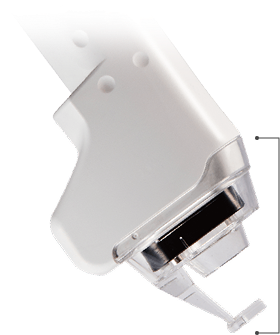

Handpiece tip
Edge Pulse & Moving Mode
Various Beam Pattern
Automatic Detection Tip
INDICATION
Skin Tightening / Wrinkles, Fine lines / Pigmented Lesions & Lentigines
Scars(Acne Scar, Burn Scar, Hypertrophic Scar, Striae Distensae)
Fractional Ablative Skin Resurfacing / Large Pore / more
- Various Beam Pattern
Standard
Refresh
Random
Scatter
Gaussian
- Edge Pulse
Carbonization30W(Normal)
Char-FreeEdge Pulse
Edge Pulse conveys high peak power in a very short time and minimizes heat diffusion to reduce the PIH.
Real Result
Before
4 Weeks After
Before
4 Weeks After
Before
4 Weeks After
Before
4 Weeks After
Before
4 Weeks After
Before
4 Weeks After
Specifications
| Laser Wavelength | 10,600nm | Aiming Beam | Diode Laser 655nm |
|---|---|---|---|
| Laser Type | CO2 Laser | Dimensions (mm) | 997(H) x 240(W) x 282(L) |
| Maximum Power | 1~30W | Weight | 32 Kg |
| Surgical Handpiece |
- Laser Mode: CW, Single, Repeat, Group Pulse, ULTRA - Power Output: 1~30W, ULTRA - Pulse duration: 1~1000ms / ULTRA 0.08~1ms - Pulse delay: 1~1000ms - Frequency (ULTRA): 10~500Hz |
Fractional Handpiece |
- Power Output: 1~30W, Edge Pulse - Tip: 120, 120(s), 350, 800 - Pulse Energy: 1~300 mJ - Density: ~42.4 % - Scan Area: 2 x 2~15 x 15 (mm) - Scan Shapes: SQUARE, TRIANGLE, CIRCLE |
