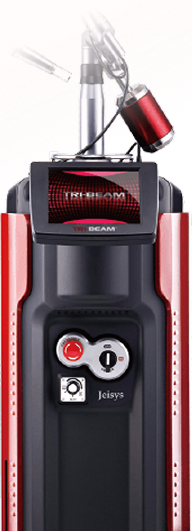

The name of Q-switched Nd:YAG

TRI-BEAMPremuim
  • Gen Tech with Quasi-Long Pulse

    The most effective way to cure both pigmentation lesions and fine wrinkles.

  • Various Beam Mode

    Easy to change G/TH/GN/532nm beam mode with one touch.

  • 2 Pulse, 20Hz/ Powerful Rich-PTP Toning

    - Fast and effective treatment.
    - Double pulsed Rich-PTP delivers higher efficacy and minimizes the adverse effects for Melasma treatment.

  • Beam Profile

    - True Top Hat beam minimizes damages on epidermis.
    - Gaussian mode for deeper and stronger treatment, only with TRI-BEAM PREMIUM™.

  • 2Pulse

    2 Pulse, 20Hz

    Epidermis,Dermis,Pulse
    Up to 20Hz

    • 1 Pulse, 10Hz

      Epidermis,Dermis,Pulse

    • 2 Pulse, 10Hz

      Epidermis,Pulse
  • True Top
    Hat Mode

    Beam Profile

    2Pulse

    Melasma

    Gaussian
    Mode

    Beam Profile

    2Pulse

    Ota Nevus,
    Tattoo Removal

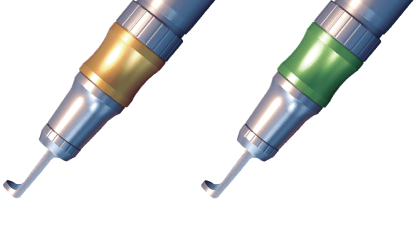

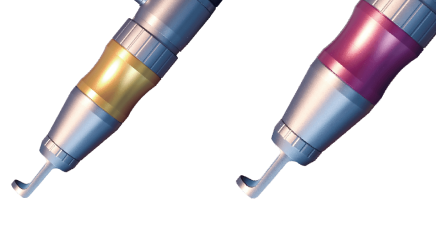

Handpiece
Zoom Collimation Fractional 1064nm Fractional 532nm Dye 585nm Dye 650nm
2~10mm 7mm 5 X 5mm 81dots 4.5 X 4.5mm 81dots 2mm 2mm
Pigmented Lesions,
Tattoo Removal		 Melasma Pigmented Lesions,
Tattoo Removal		 Color Tattoo Removal
Zoom Collimation
2~10mm 7mm
Pigmented Lesions,
Tattoo Removal		 Melasma
Fractional 1064nm Fractional 532nm
5 X 5mm 81dots 4.5 X 4.5mm 81dots
Pigmented Lesions,
Tattoo Removal
Dye 585nm Dye 650nm
2mm 2mm
Color Tattoo Removal
Real Result

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Specifications
Laser Medium Nd:YAG(Q-Switched)
Operating Parameters Q-Switched and Quasi-Long Pulse
Wave Length - 532/106nm
- 585/650nm(Option)
Pulse Energy
  • - G mode: 1064nm, 10~1500mJ
    - GN mode: 1064nm, 10~3500mJ
    - H, PTP ON mode: 1064nm, 10~1600mJ
    - TH, PTP OFF mode: 1064nm, 10~1200mJ
  • - TH, PTP OFF mode: 532nm, 10~500mJ
    - TH, PTP OFF mode: 585nm, 30~250mJ
    - TH, PTP OFF mode: 650nm, 30~150mJ
Repetition Rate 1 ~ 20Hz, Single Shot
Pulse Width - Q-Switched: 5~10ns
- Quasi-Long Pulse: 300μs
Spot Sizes Zoom HP: 2~10mm
Collimation HP: 7mm
Fractional HP: 5mm X 5mm (1064nm), 4.5mm X 4.5mm (532nm)
Dye HP: 2mm (585nm, 650nm)
Electrical Power 230V, 50/60Hz, 2.5kVA
Weight 102.5kg
Dimensions (mm) 970mm(H) x 400mm(W) x 918mm(L) without articulated arm
Beam Delivery Articulated arm with up to 240cm reach, 7-joints, 360° rotation
