Completion of IPL for Vascular Lesions

9 Interchangeable Filters
Vascular

  • 500(S)

  • 530(S)

  • 530(D)

  • 550(S)

Pigmented
Lesions

  • 560

  • 590

  • 640

Acne /
Hair Removal

  • Acne420(s)

  • Hair Removal700

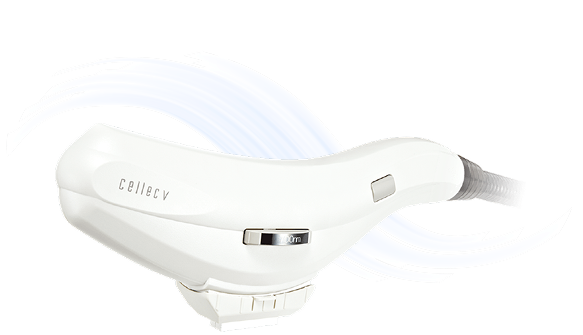

Upgraded CoolingSystem

Power Cooling 0°C ~ 5°C

Safe and Comfortable

Power Cooling system protects skin from side effects
by maintaining the skin temperature sustainedly from
0℃ to 5℃ during the whole procedure.

Powerful

Power cooling allows using higher energy delivery to target lesions by lessening pain and chance of adverse effects.

Cooling system can be turn on and off depending on patients' condition.

Vascular Treatment SpecializedFilters
500(S) 530(S)
500 - 600nm 530 - 600nm
Skin type I-II Skin type I-II
Vascular / Pigmented Lesions
Facial telangiectasia,
Small vessels,
Erythema, Lentigo		 Vascular
Facial telangiectasia,
Lentigo
530(D) 550(S)
530 - 650nm, 900nm ~ 550 - 650nm
All skin type Skin Type III-V
Vascular
All size of vessels,
Rosacea, Erythema		 Vascular / Pigmented Lesions
Facial telangiectasia,
Broken vascular
The Wavelength Comparison
Graph of VascularFilters
  • Specialized Dual Filters

    Applied short wavelength that has high absorption rate to both oxyhemoglobin and deoxyhemoglobin,
    and long wavelength that is capable of vascular treatment by occurring thermal damage.

  • More Precise and Safer Filters

    More precise and safer vascular treatment is now available by choosing filters depending on skin type and depth of target vessel.

Real Result

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Specifications
Filters 420(S) / 500(S) / 530(S) / 530(D) / 550(S) / 560 /
590 / 640 / 700
Fluence 1~60 J/㎠ Spot Size 10mm x 40mm
Pulse Duration 1~60ms Dimensions (mm) 1004(H) x 428(W) x 591(L)
Delay Time 1~60ms Weight 95 Kg
