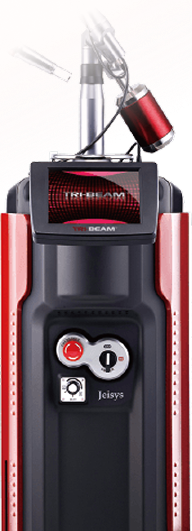

The name of Q-switched Nd:YAG

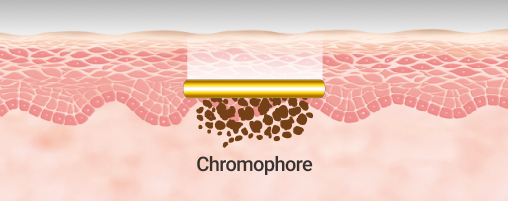

20HzLaser Beam
  • TRI-BEAM

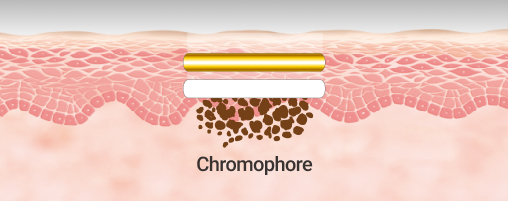

    10Hz BEAM
  • TRI-BEAM
    20Hz BEAM

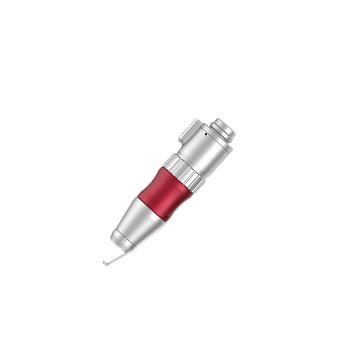

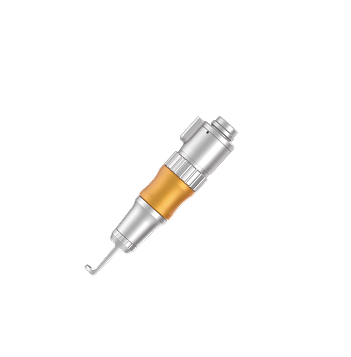

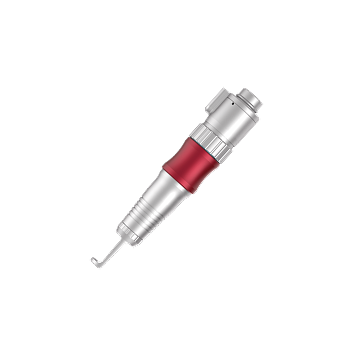

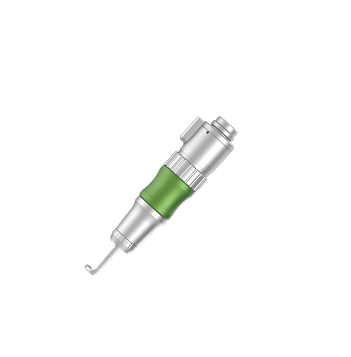

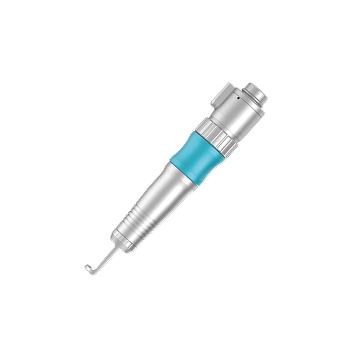

6 Handpiece

  • Zoom HP 01(1064nm)

    Collimation HP 01(1064nm)

    Zoom HP 01 Spot size, (2, 3, 4, 5, 6, 7, 8, 9, 10 mm)
    collimation HP 01 Spot size

  • 1064 Fractional HP 01

    532 Fractional HP 01(Option)

    81 dots, 1064 Fractional HP 01
    81 dots 532 Fractional HP 01 (option)

  • 532 Dye HP 01(Option)

    650 Dye HP 01(Option)

    DYE handpiece(option)

    Wavelength (nm)
Real Result

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Before

4 Weeks After

Specifications
Laser Medium Nd:YAG(Q-Switched)
Operating Parameters Q-Switched and Quasi-Long Pulse
Wave Length - 532/106nm
- 585/650nm(Option)
Pulse Energy
  • - G mode: 1064nm, 10~1500mJ
    - GN mode: 1064nm, 10~3500mJ
    - H, PTP ON mode: 1064nm, 10~1600mJ
    - TH, PTP OFF mode: 1064nm, 10~1200mJ
  • - TH, PTP OFF mode: 532nm, 10~500mJ
    - TH, PTP OFF mode: 585nm, 30~250mJ
    - TH, PTP OFF mode: 650nm, 30~150mJ
Repetition Rate 1 ~ 20Hz, Single Shot
Pulse Width - Q-Switched: 5~10ns
- Quasi-Long Pulse: 300μs
Spot Sizes Zoom HP: 2~10mm
Collimation HP: 7mm
Fractional HP: 5mm X 5mm (1064nm), 4.5mm X 4.5mm (532nm)
Dye HP: 2mm (585nm, 650nm)
Electrical Power 230V, 50/60Hz, 2.5kVA
Weight 102.5kg
Dimensions (mm) 970mm(H) x 400mm(W) x 918mm(L) without articulated arm
Beam Delivery Articulated arm with up to 240cm reach, 7-joints, 360° rotation
